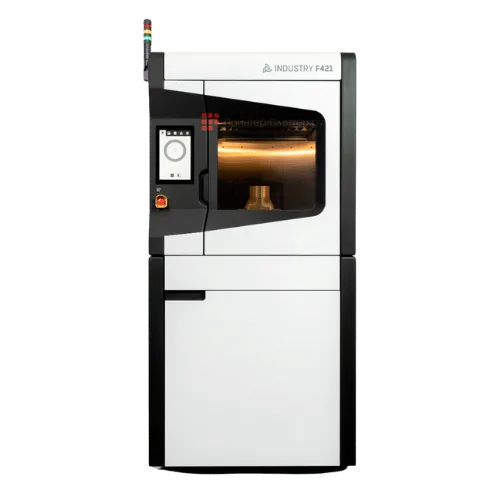

F421 by 3DGence is engineered to meet the demands of high-performance industrial applications. It offers robust construction, high-temperature printing capabilities, and versatility in material compatibility, making it ideal for producing complex, durable parts required in industries like automotive, aerospace, and manufacturing.
up to 400 mm/s
Optimum for 3D printing
380 × 380 × 420 mm
PEEK, CF materials, PC, PA, ABS
Job-specific printing modules and developed printing profiles
Produce parts cheaper and faster than before with the materials you know. Easily produce end parts or spare parts that can replace worn details.

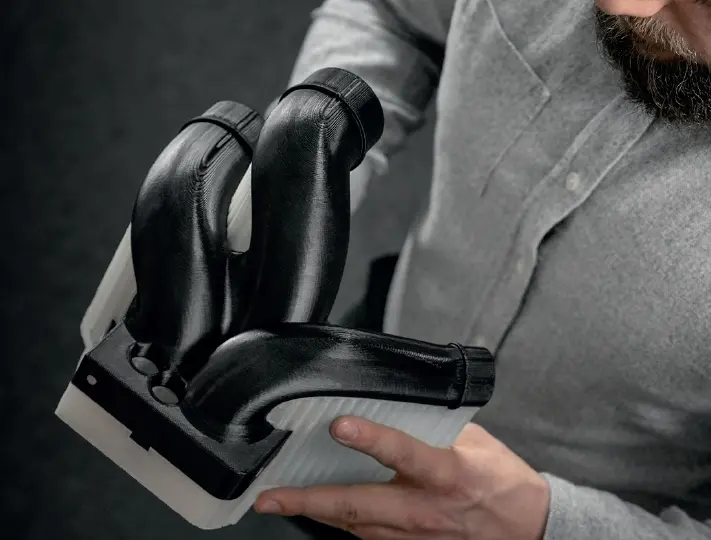

Durable and accurate end parts manufacturing.
Cost-cutting ensured by high print speed and short downtime.
Batch printing with a large build volume.
Accelerate your product development and shorten the road to the market by replacing your traditional prototyping process with 3D printing. The use of a 3D printer in the company allows to significantly reduce the prototyping time.
Head start on the competition with high-performance materials.
Complex prototypes with the use of soluble supports and large build volume.
Controlled environment in a high-temperature chamber.
| Feature | Specifications |
|---|---|
| Build volume | 380 × 380 × 420 mm (60 648 cm3) |

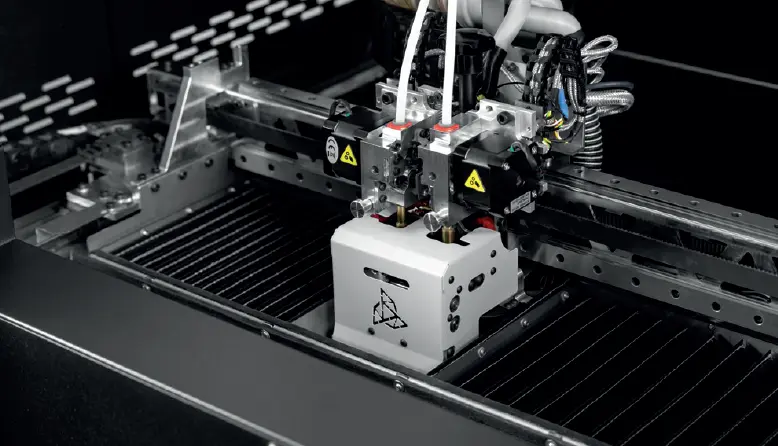

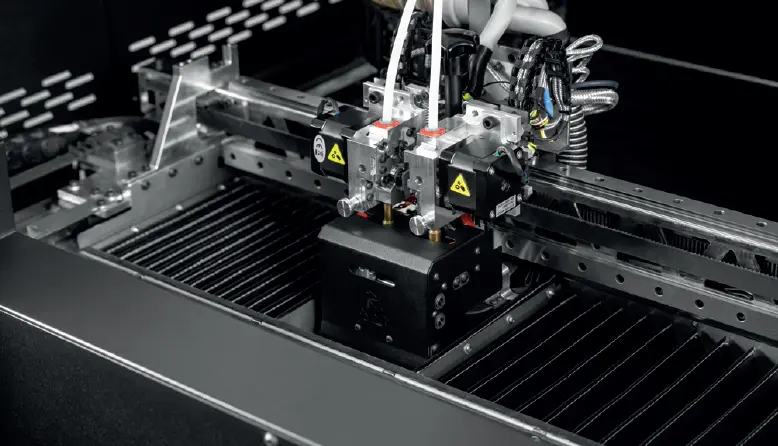

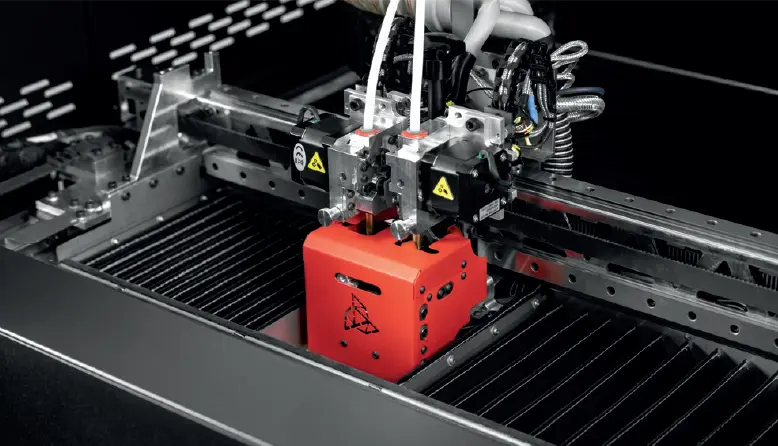

| Printing system | Dual extruder equipped with purging station |
| Filament diameter | 1.75 mm |
| Model materials | ABS, ABS Carbon, AddigyF1030 CF-10, ASA, ezPC-CF, LEXAN™ EXL AMHI240F, PA6 Neat, |
| Support materials | Breakaway support material, soluble support material ESM-10 and ESM-30 |
| Material chamber | 4 bays with automatic spool change |
| Nozzle temperature (max.) | 500°C |
| Buildplate temperature (max.) | 160°C |
| Chamber temperature (max.) | 195°C (active heating) |
| Filament chamber temperature (max.) | 50°C |
| Software | 3DGence CONNECT, 3DGence SLICER 4.0 |
| Additional accessories | Advanced filtration unit, UPS – emergency power supply, signal tower |
