EX Model

EX Model is a powerful bridge that simplifies CAD modeling from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to create professional-grade CAD digital models that are compatible with your CAD software.

Let’s start project together!

Tell us about your project and we’ll get back to you within 24 hours.

    What is your name?*

    What company do you represent?

    Phone number?*

    A few words about your project*

    EXModel

    Effortless Mesh Processing

    Say goodbye to complexity. EX Model seamlessly extracts all necessary elements, bridging the gap between 3D scanning and CAD design, ensuring a smooth transition from scan to design.

    Precision CAD Creation

    Craft high-quality CAD designs directly with EX Model's intuitive free-form and parametric modeling tools, unleash your creativity and bring your ideas to life.

    Enhanced Data Utilization

    Expand the horizons of 3D data application with EX Model. Elevate customer experiences by effortlessly repairing mesh and exporting aligned and booleaned data for seamless 3D printing.

    Cost-Effective Solution

    Experience the ultimate value with EX Model. As the most cost-effective mesh processing and reverse engineering all-in-one solution, it empowers you to simplify models for simulation.

    Key Features

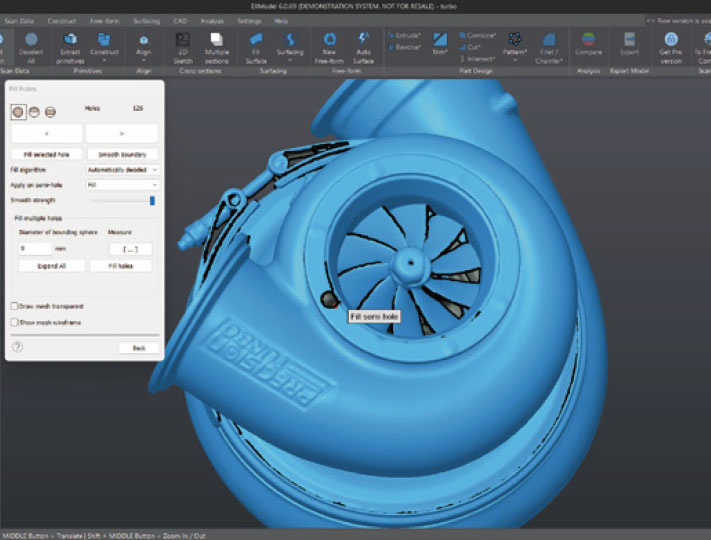

    Mesh Editing

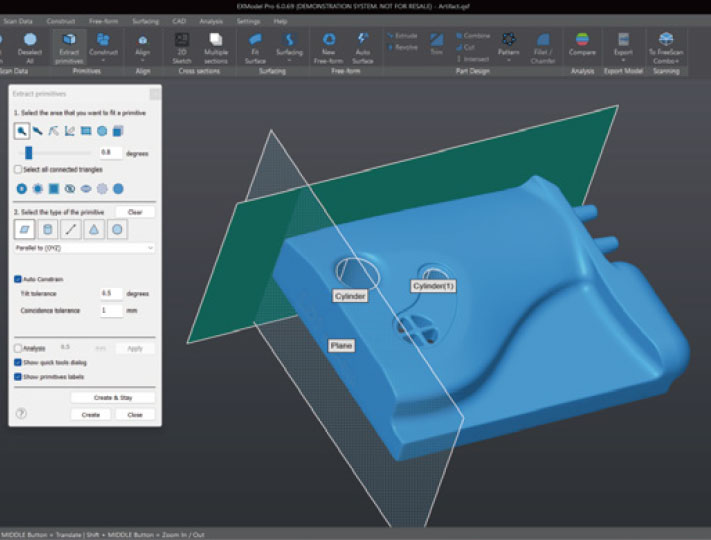

    Primitives Extraction

    Hybrid Modeling*

    3D Sketching
    & Fill Surface*

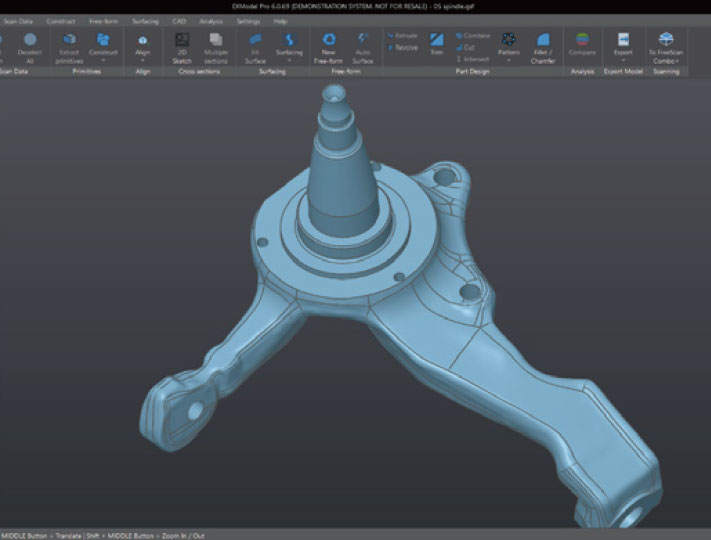

    Free-form Modeling & Auto Surfacing

    Constrained

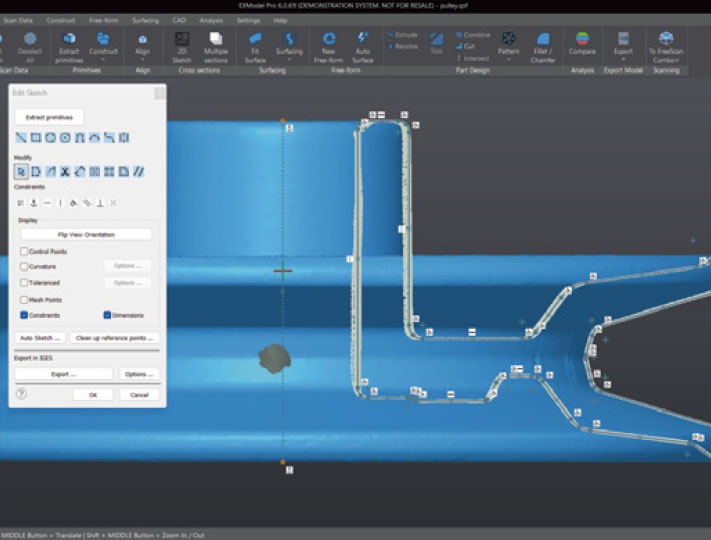

    2D Sketching*

    Function Features Comparison

    FeatureEXModel ProEXModel
    Mesh Editing (Segmentation, Fill Joles and Smoothing)YesYes
    Mesh Alignment (Coordibates/ N-points/ Fine Align)YesYes
    Primitives Extraction/ Construct ReferencesYesYes
    Cross Sections/ 2D Sketching/ 3D SketchingYesYes
    Fit / Manual Free Form Modelling/ Auto SurfacingYesYes
    Export Features/ Profile as IGES/STEP/DXFYesYes
    Constraints/ Offset/ Patterns in 2D sketchYesNo
    Helix/ Loft/ Sweep/ Fill Surface/ Blend surface/ FlattenYesNo
    Extrude / Revolved surfacesYesNo
    Trim to Solid / Cut / Combine / Intersect / Fillet / Chamfer / PatternsYesNo
    Hybrid Modelling (Free-Form & Parametric)YesNo
    Transfer Design and Feature Tree to other PackagesYesNo
