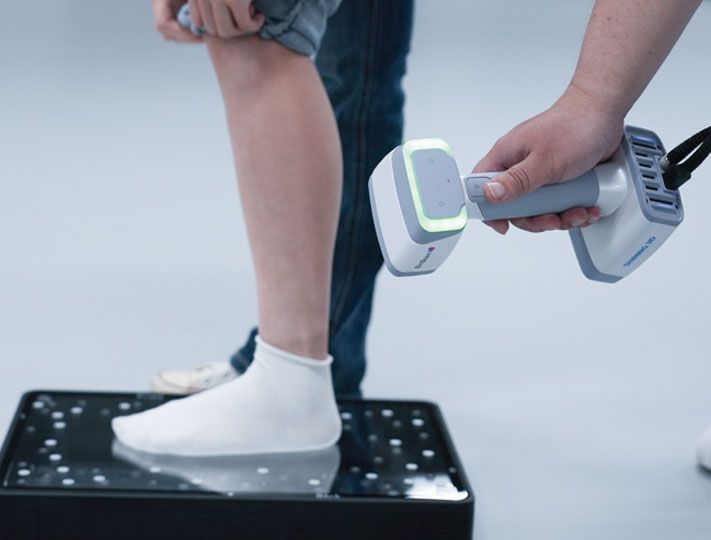

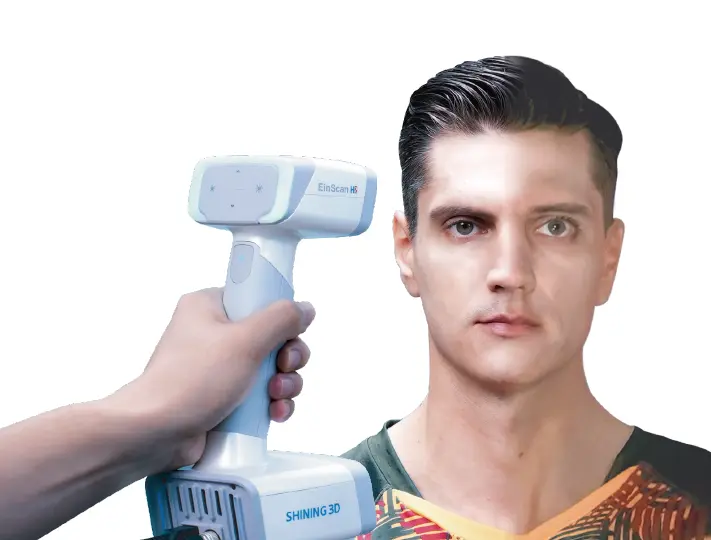

The EinScan H2 improves on its predecessor with a 5MP resolution texture camera, enhanced accuracy, and 3 infrared VCSEL projectors for more photorealistic textures and better quality data. Its wide scanning area and adjustable working distance make it suitable for various scenes and objects, both small and large, in narrow or wide spaces.
Dual light sources improve scanning efficiency. LED light offers fast 3D scanning with accurate, high-quality data

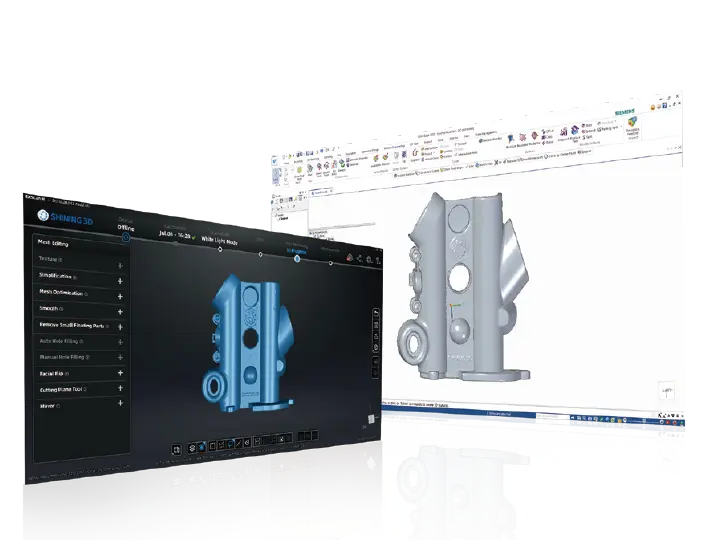

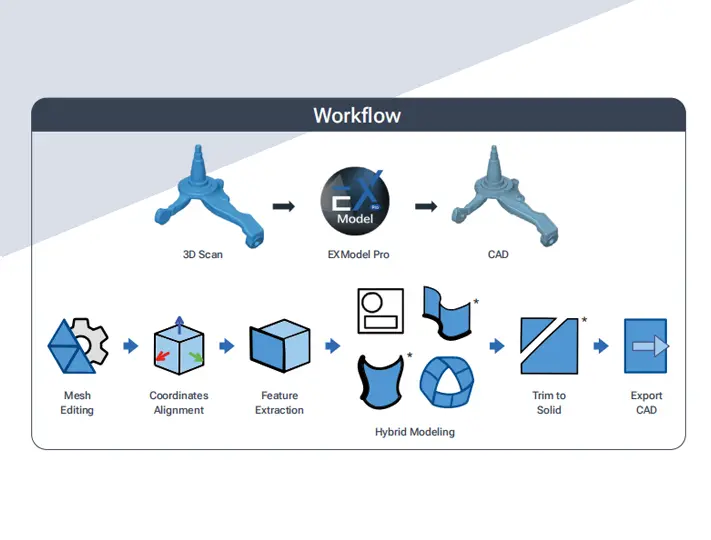

EXModel is a powerful bridge that simplifies CAD modeling from 3D scanning to manufacturing.
With the integration of EXScan H, you can now seamlessly import data to EXModel with a single click after completing a scan.
EXModel offers a comprehensive set of tools that enable you to create professional-grade CAD digital models that are compatible with your CAD software.
| Scan Mode | White Light Mode | IR Mode | |
|---|---|---|---|
| Light Source | White LED Light, Visible | Infrared VCSEL Light, Invisible | |
| Scan Accuracy | Up to 0.05mm | Up to 0.1mm (IR Mode) | |
| Volumetric Accuracy | 0.05mm±0.1mm/m (White Light Mode) | 0.1mm±0.3mm/m (IR Mode) | |
| Point Distance | 0.2mm–3mm | ||
| Best Working Distance | 470mm | ||
| Effective Working Distance Range | 200mm–700mm (White Light Mode) | 200mm–700mm (White Light Mode) | |
| Maximum FOV | 420mm*440mm (White Light Mode) | 780mm*900mm (IR Mode) | |
| Scan Speed | 1,200,000 points/s (White Light Mode) | 1,060,000 points/s (IR Mode) | |
| Texture Resolution | 5MP | ||
| Align Modes | IR Mode: Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers | White Light Mode: Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment | |
| Safety | LED light (eye-safe) (White Light Mode) | CLASS I (eye-safe) (IR Mode) | |
| Built-in Color Camera | Yes | ||
| Texture Scan | Yes | ||
| Software Included | EXScanH | ||
| Output Formats | OBJ, STL, ASC, PLY, P3, 3MF | ||
| Size | 108 mm110 mm237 mm | ||
| Scanner Body Weight | 731.1 g | ||
| Operating Temperature Range | 0°C ~ 40°C | ||
| Operating Humidity Range | 10% RH ~ 90% RH | ||
| Certifications | CE, FCC, ROHS, WEEE, KC | ||
| Interface | USB 3.0 | ||
| Input Voltage | DC: 12 V, 5.0 A | ||
| Recommended Configuration | OS: Win10/11, 64-bit; Graphics card: NVIDIA GTX/RTX, RTX2060 or better;
Video memory: ≥6GB; Processor: Intel I7-11700 or better; Memory: ≥64GB | ||
| Required Configuration | OS: Win10, 64-bit; Graphics card: NVIDIA GTX1060; Video memory: ≥4GB; Processor: Intel I7-8700; Memory: ≥16GB | ||
