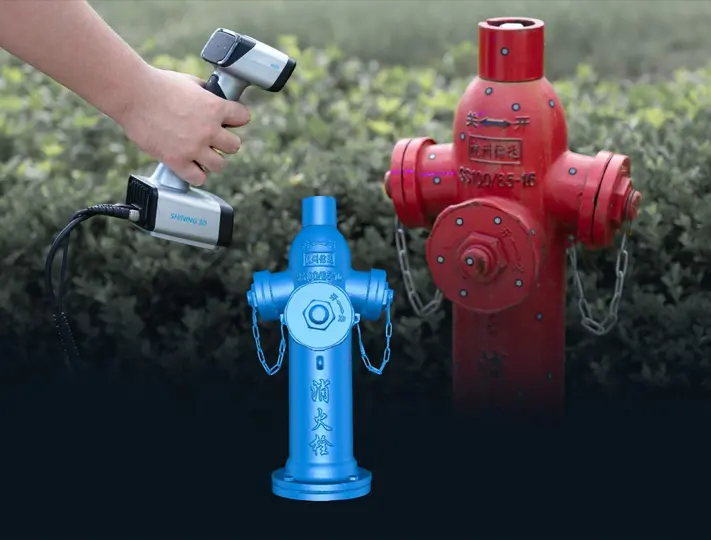

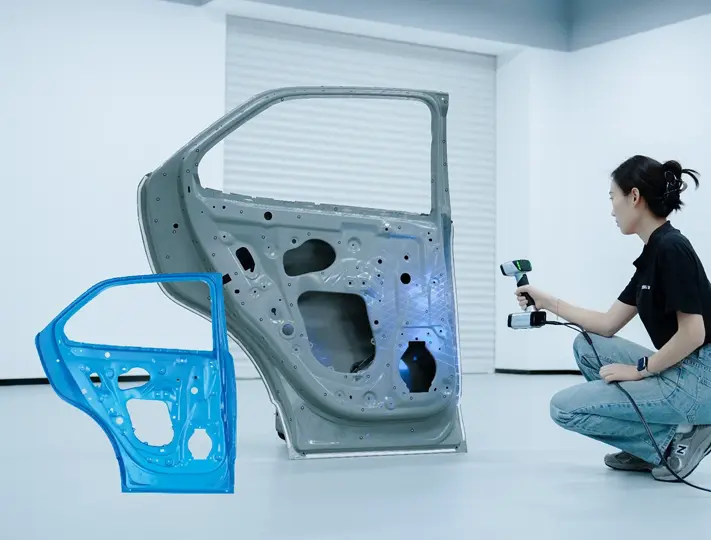

The EinScan HX2 enhances its predecessor’s features, now boosting 13 crossed blue laser lines for more detailed scanning and an increased frame rate of 120 FPS for faster scanning. Retaining the hybrid laser and blued LED technology, the EinScan HX2 excels in accuracy, versatility, and ease of use.The EinScan HX2 is ideal for automotive aftermarket, mold manufacturing, research & education, art & culture.

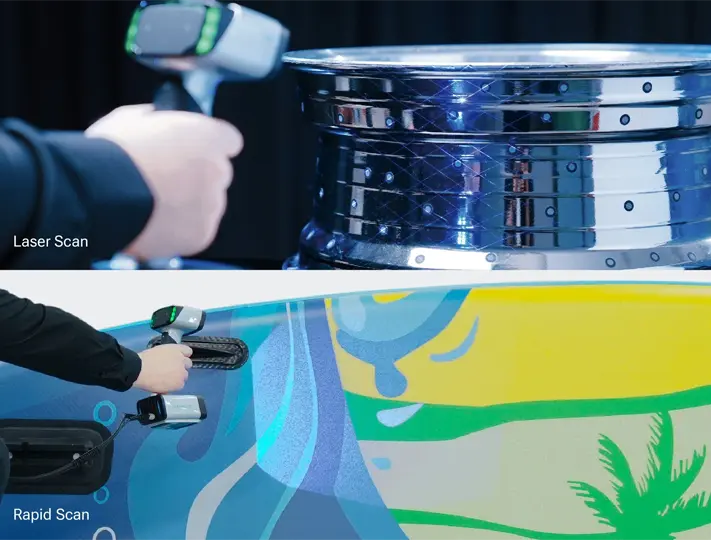

The EinScan HX2 continues the innovative integration of hybrid blue laser and LED light technology, enhancing material adaptability for a broader range of applications. The advanced blue laser captures complete data from black and reflective surfaces with exceptional surface and environmental adaptability, now with 13 laser lines for more fast and detailed scans. The efficient LED light scanning requires no markers, enabling rapid 3D scanning without preparation.
The EinScan HX2’s laser scan mode reaches 1,600,000 points/s and 120 FPS, enabling rapid scans for reverse engineering, CAD/CAM, and 3D printing. It scans most objects in minutes, ensuring superior efficiency and productivity in all your 3D scanning projects.

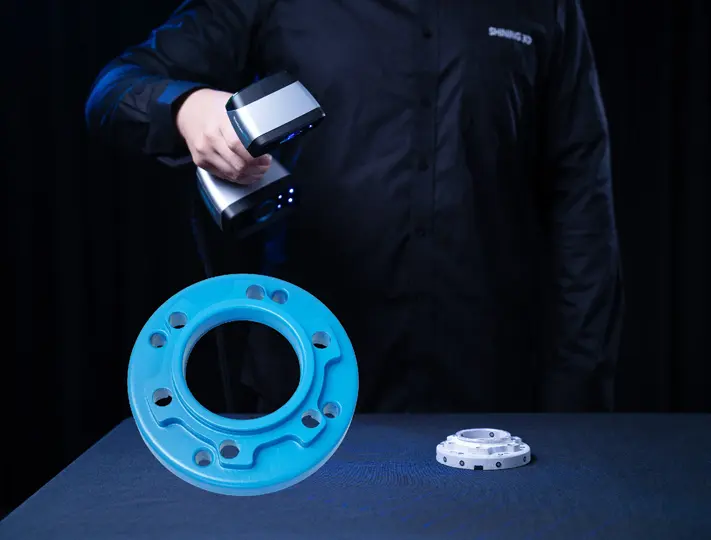

The EinScan HX2 meets the rigorous demands of industrial applications for reverse engineering and precise measurement.
Minimum point distance of 0.05 mm Accuracy up to 0.04 mm under laser mode
The EinScan HX2 excels in portability and ease of use with its ergonomic design and lightweight build at just 745g. Perfect for both beginners and professionals, its plug-and-play functionality and user-friendly software make 3D scanning efficient and comfortable, anywhere you go.
Experience high-resolution color capture with the EinScan Libre. Equipped with a 48MP color camera, it delivers lifelike color fidelity, capturing every detail with clarity and vibrant colors. The EinScan Libre ensures your scans reflect the full richness of the scene or object you’re scanning.
| Scan Mode | Rapid Scan | Laser Scan |
|---|---|---|
| Light source | Blue LED | Blue LED |
| Scan accuracy | Up to 0.05 mm | Up to 0.04 mm |
| Volumetric accuracy | 0.05 + 0.1 mm/m | 0.04 + 0.06 mm/m |
| Point distance | 0.25 mm-3 mm | 0.05 mm - 3 mm |
| Working distance | 470 mm | |
| Depth of field | 200 mm - 700 mm | 350 mm - 610 mm |
| Maximum FOV | 420 × 440 mm | 380 × 400 mm |
| Scan speed | 1,200,000 points/s, 20FPS | 1,600,000 points/s, 120FPS |
| Alignment modes | Markers, Feature, Hybrid, Texture | Markers |
| Safety | Eye-safe | CLASS I I (eye-safe) |
| Texture scan | Built-in Color Camera | No |
| Included software | EXScan HX | |
| Connectivity | USB3.0 | |
| Output formats | OBJ; STL; ASC; PLY; P3; 3MF | |
| Dimensions | 108 × 110 × 237 mm | |
| Scanner weight | 745 g | |
| Operating temperature range | 0 - 40℃ | |
| Operating humidity range | 10 - 90% | |
| Certifications | CE, FCC, ROHS, WEEE, KC | |
| Recommended configuration | OS: Win10/11, 64-bit; Graphics card: NVIDIA RTX3060 or better; Video memory: ≥6GB; Processor: Intel i7-12700 or better; Memory: ≥32GB | |
| Required configuration | OS: Win10, 64-bit; Graphics card: NVIDIA RTX2060 or better; Video memory: ≥4GB; Processor: Intel I7-8700 or better; Memory: ≥16GB | |
