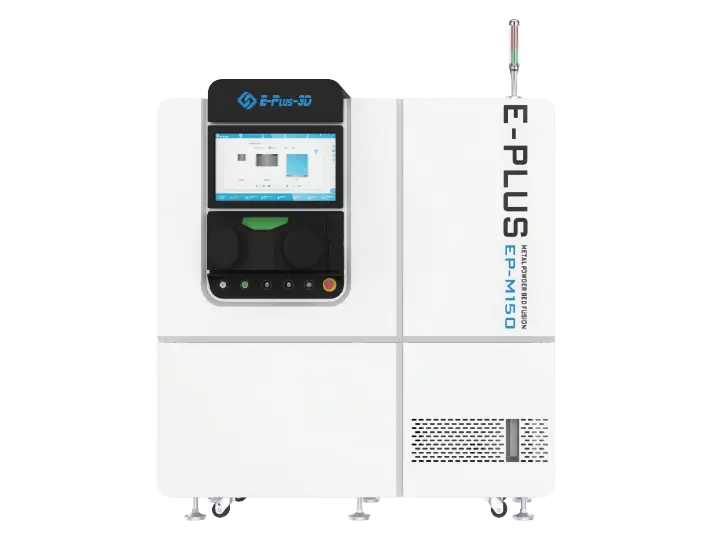

EP-M150

With Eplus3D MPBF™(Metal Powder Bed Fusion) technology, EP-M150 can professionally print complex 3D geometry data into high-performance metal 3D parts which are suitable for batch manufacturing of dental parts medical implants and material research centers to develop various metal powders with its open parameter platform.

Whatsapp
Request A Quote

High Precision

  • High laser beam quality.
  • Tiny laser spot.
  • High consistency and uniform laser beam quality from different positons in the building platform.

High Performance

  • The density of printed parts can reach nearly 100%.
  • Volatility of mechanical properties <5%.
  • In dual laser printing mode, precision deviation in alignment area ≤ 0.15 mm.

High Efficiency

  • The layer thickness can be up to 50 μm.
  • With the latest upgraded technology combining dual-laser with large layer thickness mode, the productivity has been risen accordingly

Openness

  • High consistency, different machines could use the same set of process parameters.
  • Machine compatible with multiple materials, the same machine can print multiple materials without adjusting the optical path.

User Friendly Operation System

  • Ergonomics overall design for users.
  • With "one-click printing" function, each process is ready to run, click the "print" button on the screen to start printing.
  • The replacement of build plate and recoater can be completed within 10 minutes.

Affordable Operation Cost

  • Air consumption during processing < 3 L/min.
  • Powder supply is accurate, stable and controllable, and high utilization rate of powder.
  • The existing material parameter packages are provided for free.

Safer

  • Safety design, anti-misoperation, anti-electric shock, fire prevention, anti-waste, anti-pollution.
  • Real-time monitoring and traceable of working environment and gas source status, safe and reliable.

Device Specifications

DeviceSpecifications
Machine Model EP-M150
Build volumeΦ 150 x 140 mm (Φ 5.91 x 5.51 in)
Optical SystemFiber Laser 200 W (single or dual-laser optional)
Spot Size40 - 60 μm
Max Scan Speed8 m/s
Layer Thickness 20-50 microMeter
Theoretical PrintspeedUp to 35 cm³/h
MaterialTitanium Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, etc.
Power Supply 220 V, 50 / 60 Hz, 3 / 4 kW
Gas SupplyAr / N2
Oxygen Content≤100 ppm
Dimension (W x D x H)1750 x 799 x 1828 mm
Weight900 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File
