FreeScan Trak ProW is a wireless 3D dynamic tracking system that elevates the performance of the FreeScan Trak Pro series. It maintains core features such as marker-free scanning and guaranteed high accuracy, while introducing advanced upgrades for improved performance. With battery-powered, wireless operation, it eliminates cable constraints, offering unparalleled freedom and flexibility.

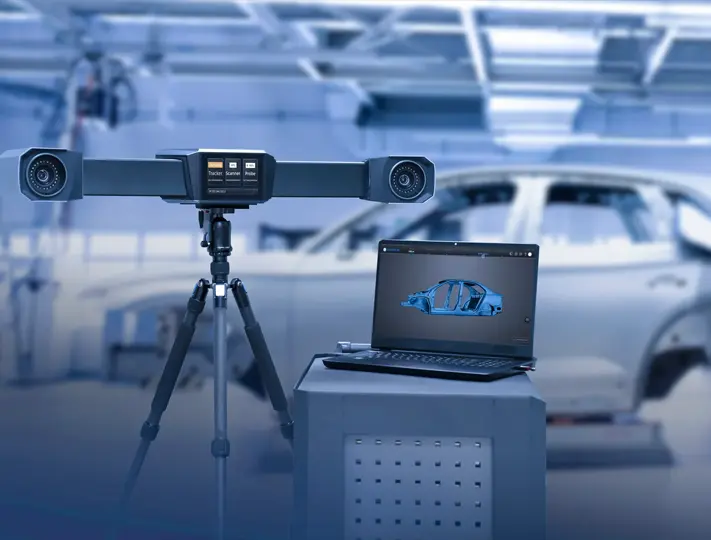

FreeScan Trak ProW features a groundbreaking design with an ultra-long 8.6 m tracking distance and widely expands the single-station tracking volume to 206.7 m³, significantly reducing the need for leapfrog* during large-scale object scanning.

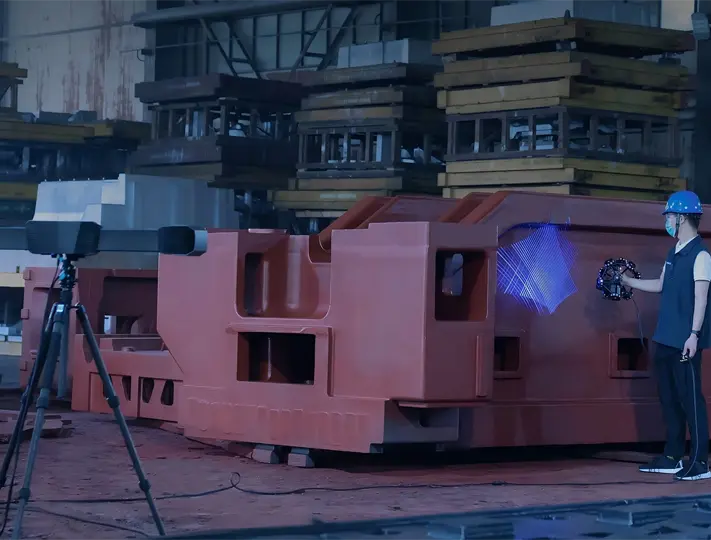

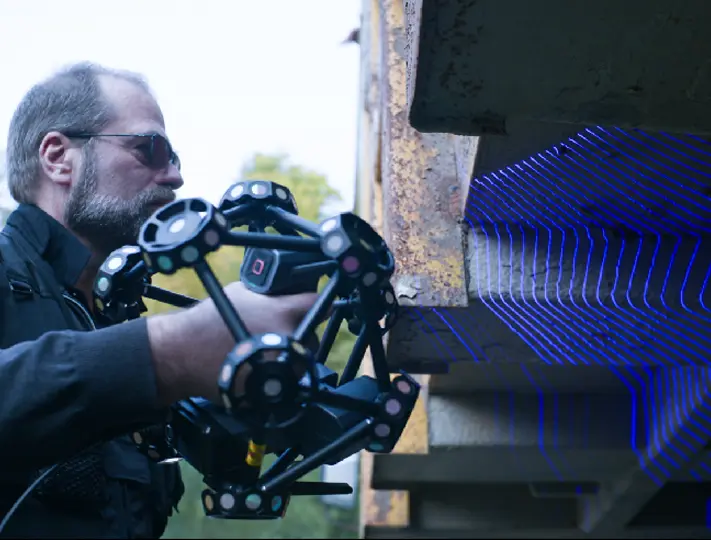

FreeTrak W enables real-time TE25W scanner recognition and positioning, eliminating the need for reference markers, which enhances scanning efficiency and streamlines the workflow, while ensuring rapid data acquisition with a scanning speed of up to 5,500,000 points per second.
FreeScan Trak ProW features SHINING 3D’s patented video-based photogrammetry, which eliminates the need for coded markers.

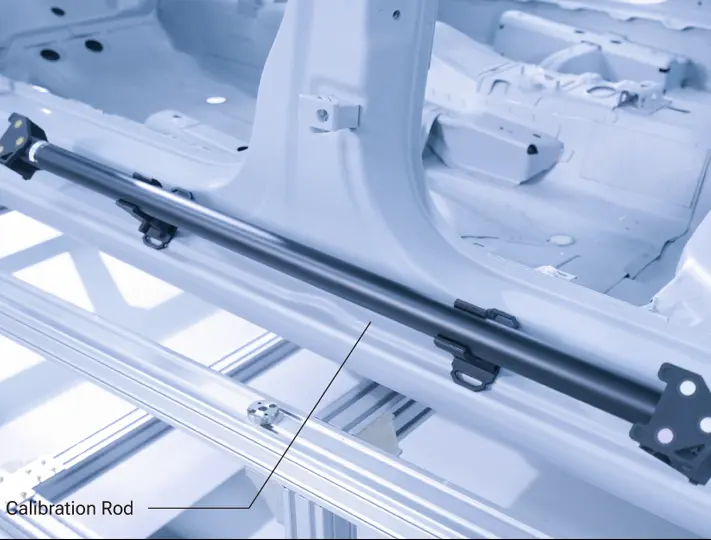

By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture.
This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
SHINING 3D offers flexible, customized solutions to accommodate diverse scanning needs. For instance, it supports a collaborative solution with multiple systems, significantly expanding the scanning range and easily meeting the scanning demands of extremely large objects. By working together, multiple devices can cover a broader area, enabling efficient, flexible and accurate full-field scanning.
Designed for quick measurements and inspections, the FreeProbe captures precise geometric data without generating mesh.
It is ideal for hidden areas the scanner cannot reach, ensuring data acquisition with pinpoint accuracy.
| Device | FreeScan Trak ProW |
|---|---|
| Accuracy | 0.023 mm |
| Volumetric accuracy (based on measuring range) | 15.6 m³ (3.5 m away from the tracking bar): 0.046 mm; 45 m³ (5 m away from the tracking bar): 0.063 mm; 76 m³ (6 m away from the tracking bar): 0.088 mm; 128 m³ (7.2 m away from the tracking bar): 0.127 mm; 206.7 m³ (Max. tracking range, 8.6 m away from the tracking bar) |
| Volumetric accuracy with VPG | 0.044 + 0.012 mm/m (extension volume) |
| Scan speed | 5,500,000 points/s |
| Resolution | 0.01 - 10 mm |
| High-speed scan | Included (50 laser lines) |
| Detailed scan | Included (7 parallel laser lines) |
| Deep pockets scan | Included (1 laser line) |
| Weight | FreeTrak W: 8.2 kg | TE25W: 1.47 kg |
| Connection | Wireless & Wired mode (fiber optic) |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX |
| Acceptance test | VDI/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab) |
